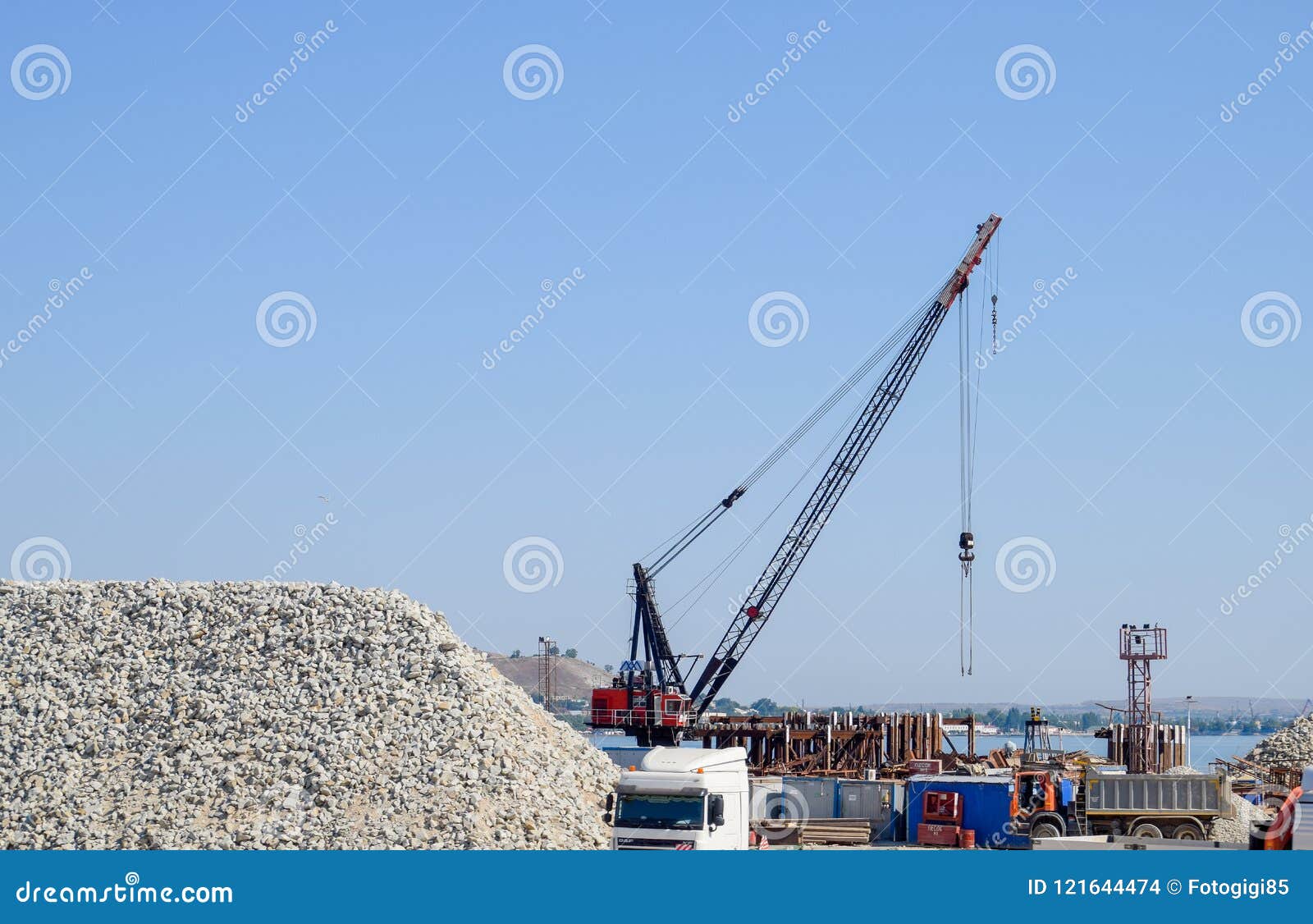

It would seem a bridge and a bridge. But in fact, the construction of the Crimean Bridge is a giant living mechanism that literally buzzes 24 hours a day in almost any weather. Almost 10 thousand people, more than 500 units of equipment - from giant cranes to conventional dump trucks and pavers. Thousands of tons of concrete, metal and fittings, hundreds of thousands of huge bolts, nuts and electrodes. This is all the Crimean Bridge, which in the Crimea is called the construction of the century.

So, building a bridge in all the details in the photo below.

How is the construction of the Crimean bridge

You know or not, but the Crimean bridge will be the longest at the moment in Russia - its total length is 19 km. Construction is being carried out simultaneously from two sides - from the Taman Peninsula and from the Kerch side.

How is the construction of the Crimean bridge

Most of the bridge will pass on concrete pillars installed in the Kerch Strait, a small part through the island of Tuzla and the shipping section is located near Kerch itselfover which they have already installed two giant metal arches - railway and automobile. At the same time it is the highest point of the bridge.

The location of the shipping part near Kerch is due to the peculiarities of the Kerch Strait, which is very small and problematic for shipping. Fairway, in fact, here is one and it is located just about the very Kerch.

So, let's go from the very beginning of the bridge from the Crimea to its highest point.

Here is the “beginning” of the bridge from the Crimea today. The first support of the coastal part is just being prepared: the foundation and reinforcement cage for concrete filling is ready.

How is the construction of the Crimean bridge

Each subsequent support is higher and higher, and it is quite noticeable. The fact is that due to the proximity of the navigable part to Kerch, the future road must pick up rather sharply in order to climb the 35-meter height of the arched part. Already finished concrete supports. In between, temporary auxiliary supports made of metal structures are visible, which are used for sliding bridge spans and their subsequent installation.

How is the construction of the Crimean bridge

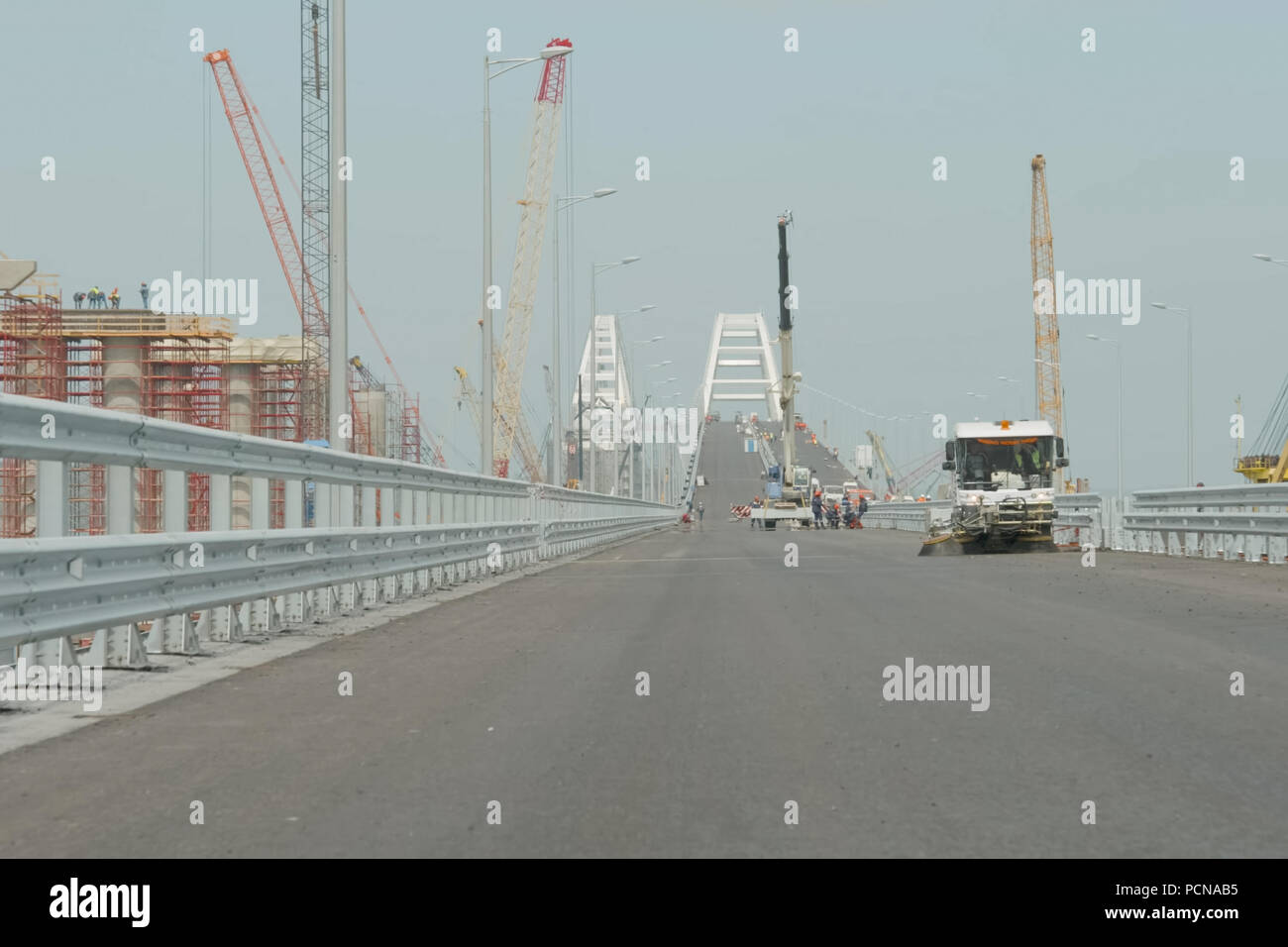

In the distance you can see the newly installed arches of the shipping part and the partially mounted road approach. In the photo it seems that the rise is quite steep.Maybe it's because of the shooting angle?

How is the construction of the Crimean bridge

Sea supports are already fully prepared.

How is the construction of the Crimean bridge

And the spans of the automobile part are already almost completely mounted on them. It remains to establish only a few spans adjacent directly to the shipping arch and the spans over the coastal part.

The railway part, as well as the support for it has not yet been installed. They will be built secondarily at the place where the technical bridge is now installed to support construction (most of the pictures were taken from it, all the equipment, building materials, workers' bogs and the technological transport are moved).

How is the construction of the Crimean bridge

View from below on the automobile span.

How is the construction of the Crimean bridge

The remaining few spans. Support under them finish to cast in the surface part. In the upper left corner - avanbek. The design is in the form of a sloping ski, which is mounted in front of the span structure, in order to make it easier to crawl on supports while sliding.

How is the construction of the Crimean bridge

The process of welding huge pipes used as piles to move the main construction platform.

How is the construction of the Crimean bridge

The process is quite interesting. Over the place where you need to weld the pipes, install a temporary plywood booth - "teplyak." This is done in order to protect the weld seam from the weather.

How is the construction of the Crimean bridge

Here, near the shower of the remains of huge pipes.

How is the construction of the Crimean bridge

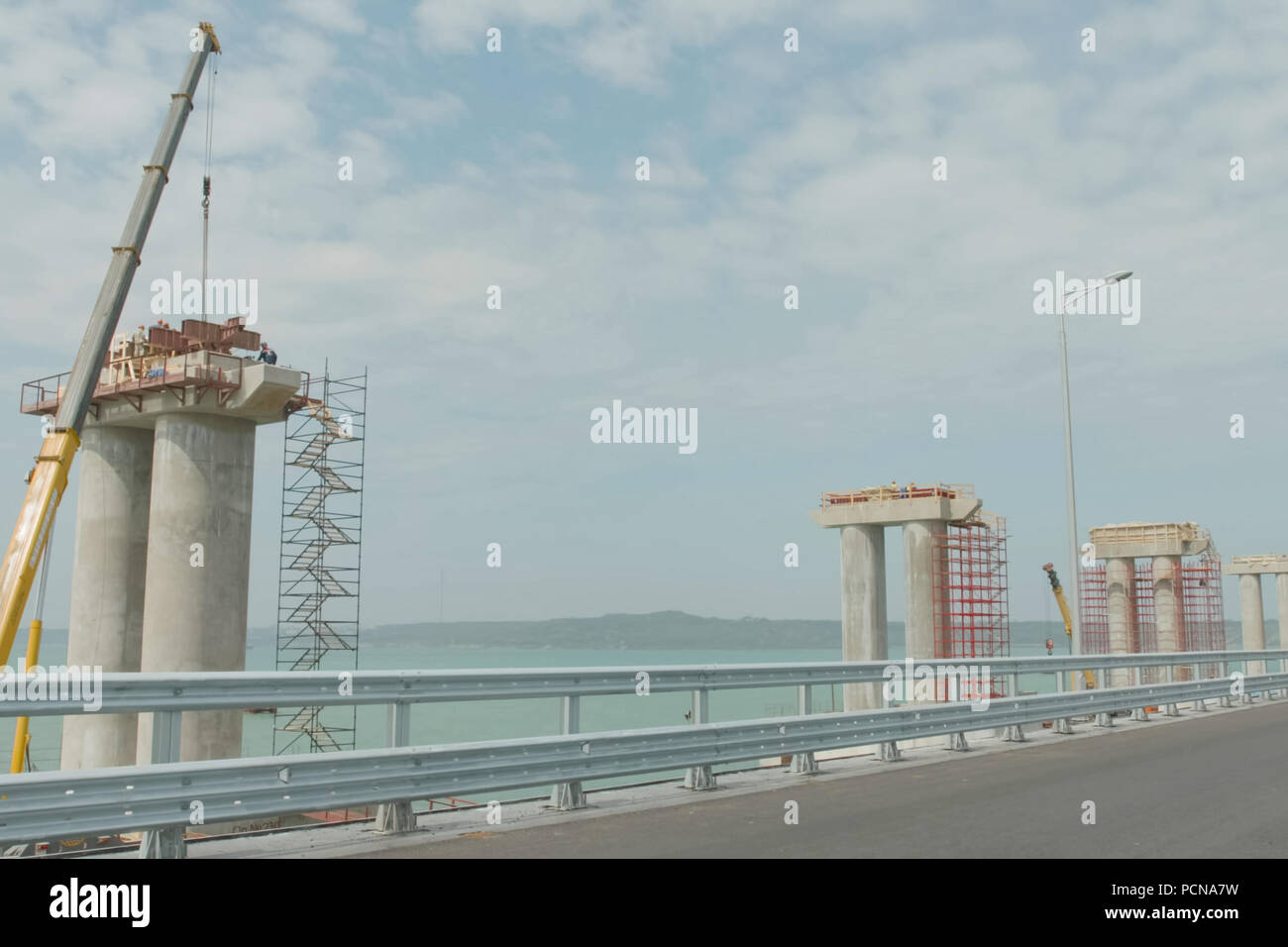

The farther into the sea, the more massive the concrete pillars. To climb up and down, use temporary closed stairs. Going down on them, of course, is not very convenient, judging by the way the worker does it.

How is the construction of the Crimean bridge

Preparing to fill the last support before the shipping arch. The shields of red are the formwork into which the concrete is poured.

How is the construction of the Crimean bridge

A look at the technological bridge from the main construction platform.

How is the construction of the Crimean bridge

And this look in the opposite direction - just on the shipping spans. On the left - the automobile part, on the right - the railway. Both arches weigh more than 6 thousand tons each, they were collected on the shore from the Kerch side, and then they were floated by sea to the installation site, where they were lifted to a height of 35 meters with the help of special cranes and set on supports. Bottom arches, by the way, are different.

How is the construction of the Crimean bridge

How is the construction of the Crimean bridge

At the time of installation of arches navigation on the Kerch Strait was stopped. At the same time the Court has already held under a bridge in the usual manner. Right foreground visible temporary piles for construction platform. It is self-shifting and transfers itself as necessary to the piles that were previously driven into the bottom of the strait.

How is the construction of the Crimean bridge

Extreme support for the arch from the Taman side.People are very tiny against its background ... In the background you can see the construction platform from the Taman side. From Kerch (from where the picture was taken) is the same.

How is the construction of the Crimean bridge

The armature, which is used to fill the supports, is almost the thickness of an adult’s hand.

How is the construction of the Crimean bridge

The worker returns with a cast of support.

How is the construction of the Crimean bridge

View of the construction platform almost from sea level.

How is the construction of the Crimean bridge

View from the sea level on the support of the arched part. Its height is 35 meters and, in order to climb up, it is necessary to overcome the metal staircase blown by all winds. Just the other day, an elevator was mounted here, but sometimes you still have to climb stairs.

How is the construction of the Crimean bridge

A look down from the top point of the arch support.

How is the construction of the Crimean bridge

Construction platform on top. There are two huge Liebher cranes installed on it, which lift and move all the necessary materials both to the upper part of the platform and to the lower part where the concrete pouring works are underway.

How is the construction of the Crimean bridge

The surface of the railway arch. Still without sleepers and rails.

How is the construction of the Crimean bridge

The first car on the car arch.

How is the construction of the Crimean bridge

Below there is a fill of the connecting part of the support of the arched part.

How is the construction of the Crimean bridge

Reinforcement mesh. How much metal is there?

How is the construction of the Crimean bridge

This is how temporary scaffolding for high-rise works on supports look like.

How is the construction of the Crimean bridge

The attachment points of the various elements of the arch.The inscription "09/30/2017" and the signature - a mark of technical supervision of the adoption of the bolted joint. Each bolted joint is checked for the tension of the bolts, if everything is normal - the representative of the technical supervision puts his signature and the date of acceptance (and also marks this joint in his existing assembly card and puts his signature in the act).

How is the construction of the Crimean bridge

All compounds are coated with a special anti-corrosion layer, because the aggressive environment will constantly affect the bridge - the Kerch Strait is famous for its storms and hurricane winds.

How is the construction of the Crimean bridge

It is with such bolts that most of the elements of the arch are pulled together, which, in fact, is a huge designer.

How is the construction of the Crimean bridge

Folk instrument)

How is the construction of the Crimean bridge

The reinforcement base of one of the supports.

How is the construction of the Crimean bridge

Matrix.

How is the construction of the Crimean bridge

A look at the part under construction from the side of Taman. It remains to lay 4 road spans and Taman part to connect with the arch.

How is the construction of the Crimean bridge

I imagine what it is like to work there. In the wind, above the water, at a height ...

How is the construction of the Crimean bridge

View of the bridge through the doorway in the railway arch.

How is the construction of the Crimean bridge

The inscriptions left by workers.

How is the construction of the Crimean bridge

How is the construction of the Crimean bridge

It is also fined here ...

How is the construction of the Crimean bridge

Under the bridge rush, are vessels.

How is the construction of the Crimean bridge

Technological bridge.

How is the construction of the Crimean bridge

Formwork elements for pouring concrete piers of the bridge.

How is the construction of the Crimean bridge

They, by the way, are thoroughly washed after being removed from the poured elements.And then install on new places for the subsequent filling.

How is the construction of the Crimean bridge

This is what the construction of the Crimean Bridge looks like at the beginning of November 2017.
