Electric mousetrap

I have seen many different mousetraps and rats throughout my life. Not that I somehow enjoy this, but just faced with the breeding of mice from home.

I will tell you how to make a mousetrap that will kill the mouse with an electrical discharge. The design, as always, is simple and uncomplicated.

What you need to make a mousetrap?


And also: wire, wire, piece of profile, bottle, hot glue, etc.
We need a half liter plastic bottle. It is necessary to cut off the neck exactly. To do this, first mark up the cutting line with a marker.
Electric mousetrap

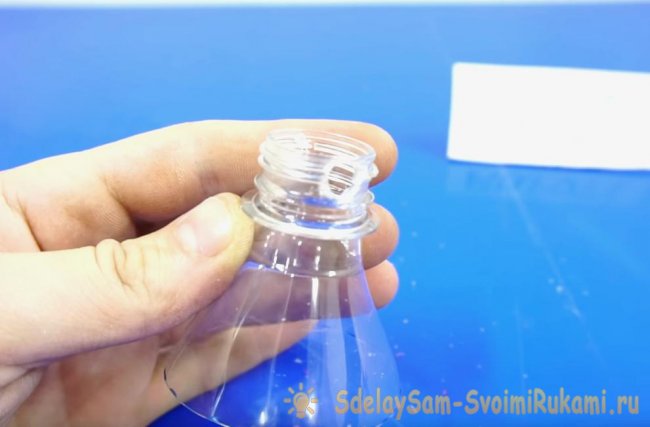

Cut off.
Electric mousetrap

Take a piece of galvanized profile for fixing drywall. Cut off a small piece.
Electric mousetrap

Take the switch.
Electric mousetrap

Mark up the seat for him.
Electric mousetrap

We drill a hole so that it is convenient to cut in the center.
Electric mousetrap

Cut with scissors for metal or in another way.
Electric mousetrap

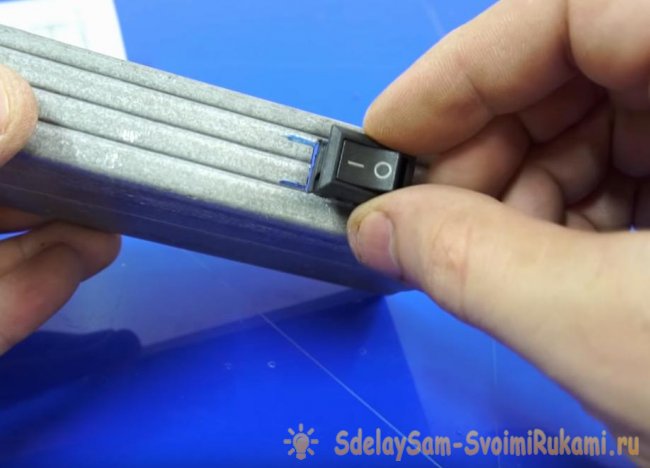

Install the switch in the hole.
Electric mousetrap

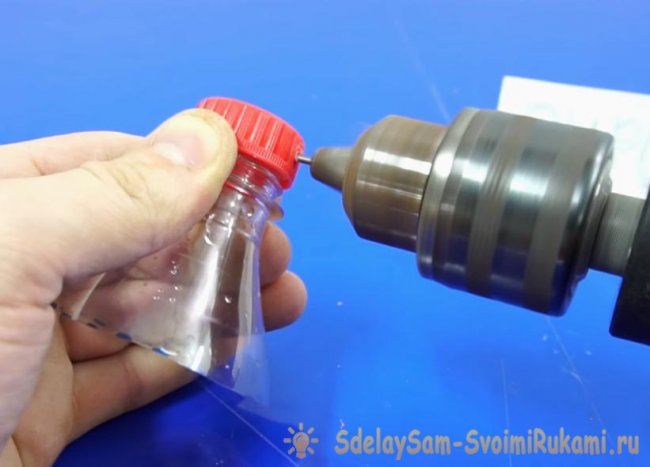

Unscrew the cap of the bottle in half. We take a drill, fix a thin drill, and drill a hole in the cap without screwing it completely off the bottle.Drill on both sides. One hole is maximum at the top so that the passing drill does not touch the neck, and the second is as low as possible so that the drill goes through the lid and through the neck.
Electric mousetrap

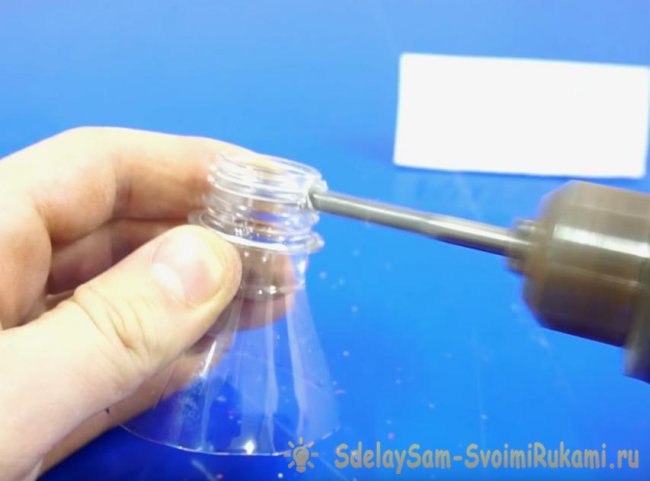

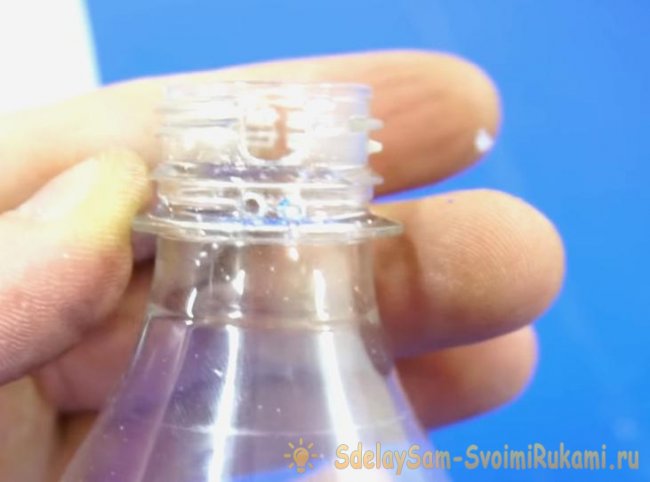

Next, screw the cap and ream the hole on the neck of the bottle with a large hole.
Electric mousetrap

Electric mousetrap

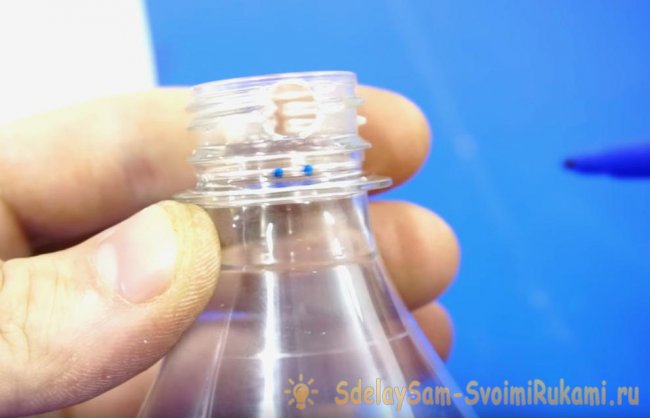

Then, below we make two more holes only on the necks with a thin drill.
Electric mousetrap

Electric mousetrap

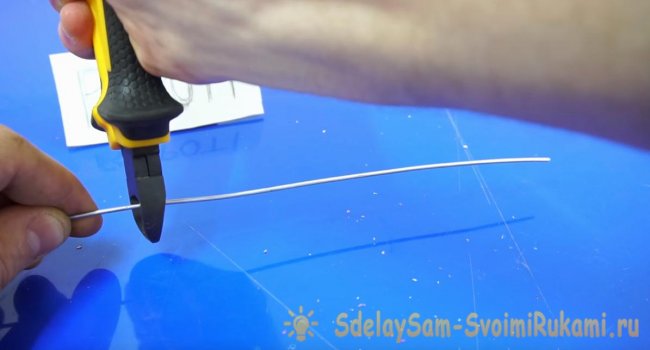

We need a piece of wire. Bite off a piece of nippers.
Electric mousetrap

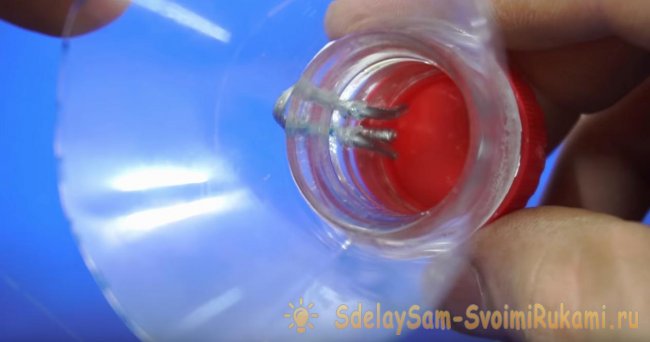

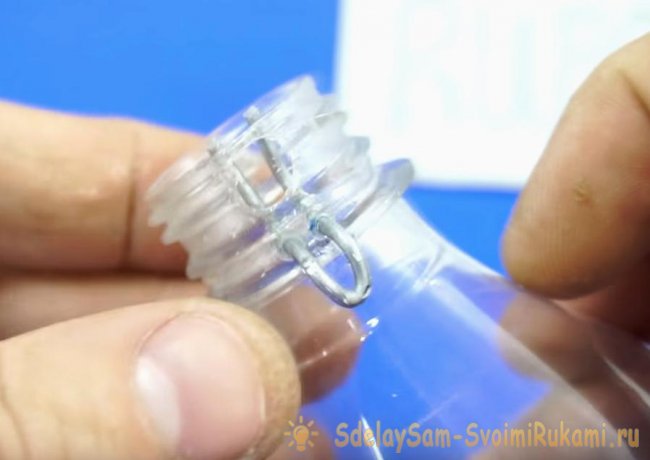

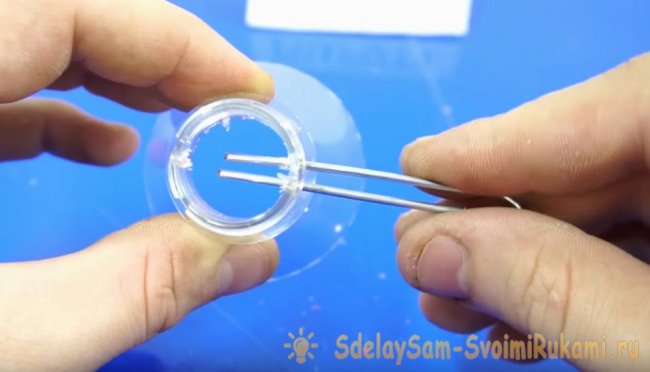

We make the U-shaped and insert it into small holes.
Electric mousetrap

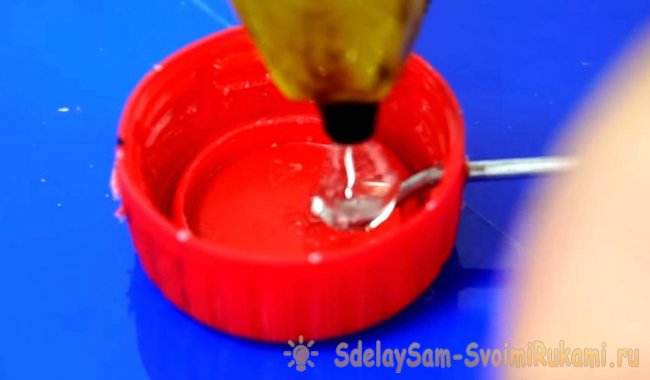

Fill it up like this:
Electric mousetrap

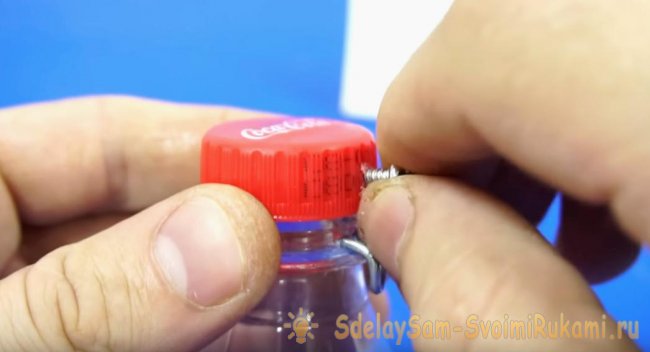

Twist the lid, to align the holes. Screw the screw into the small hole.
Electric mousetrap

As a result, we have a knot, while rotating the lid in one or the other side, the screw touches the wire. It will be a kind of switch.
Electric mousetrap

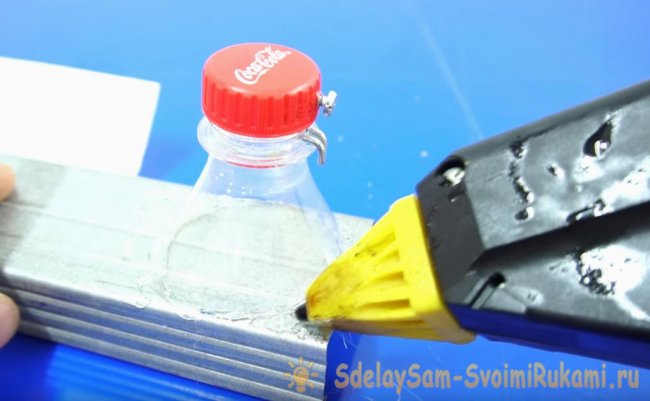

Glue the resulting node to a piece of the profile.
Electric mousetrap

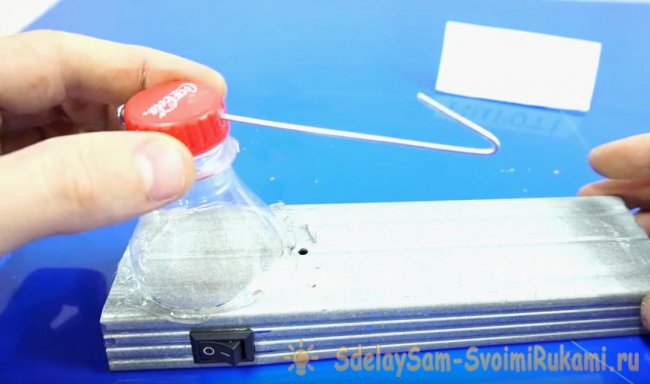

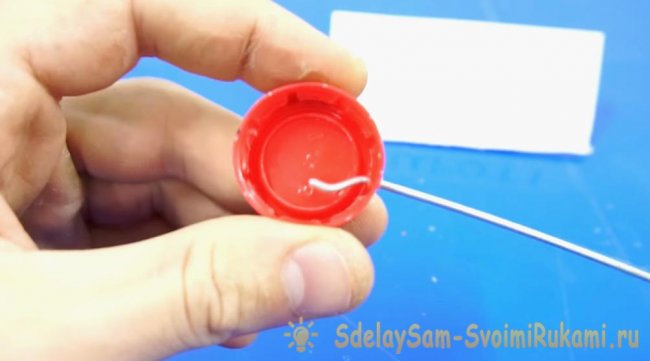

Then we take a bigger piece of wire, bend it as in the photo and push it into the hole on the other side of the lid. Fix with hot glue. This will be the electrode.
Electric mousetrap

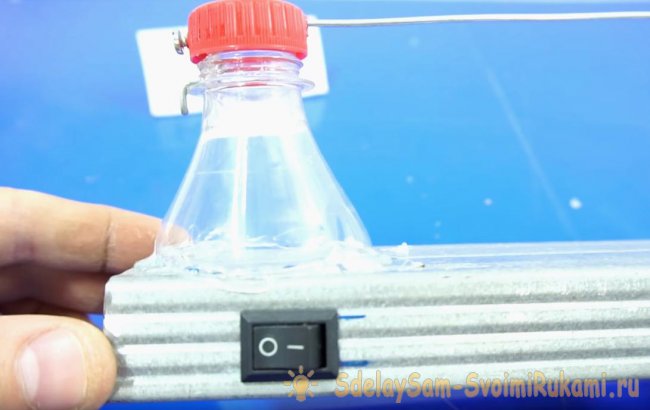

We assemble the entire structure.
Electric mousetrap

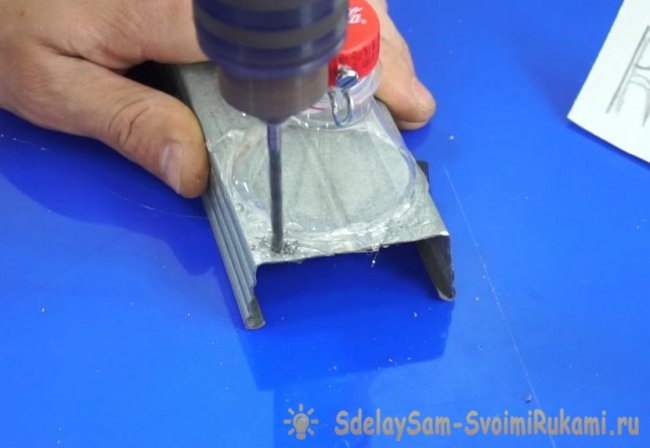

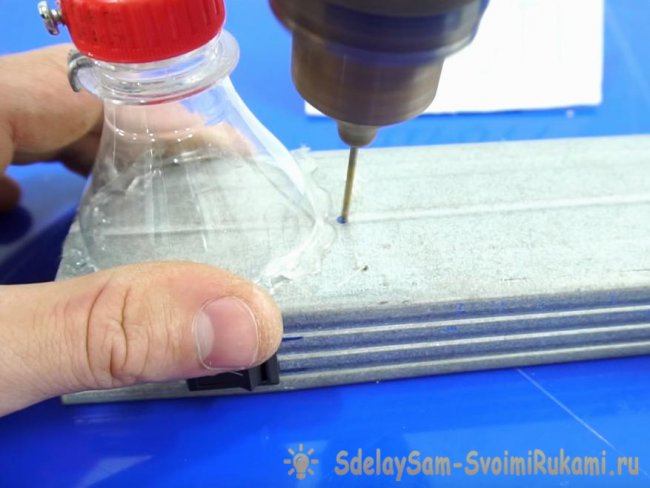

Drill a hole under the wire.
Electric mousetrap

Electric mousetrap

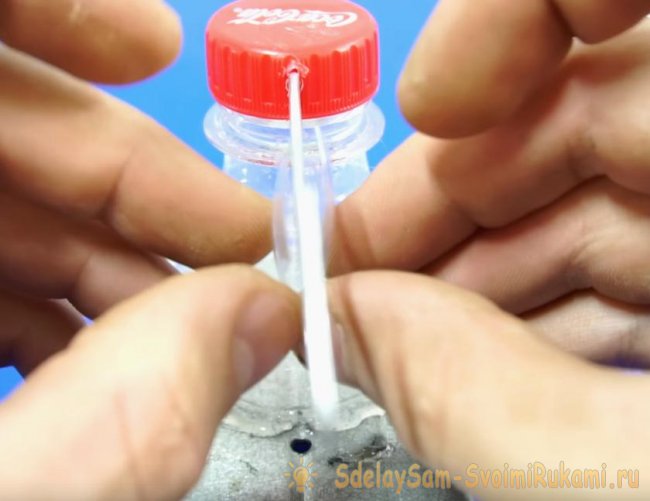

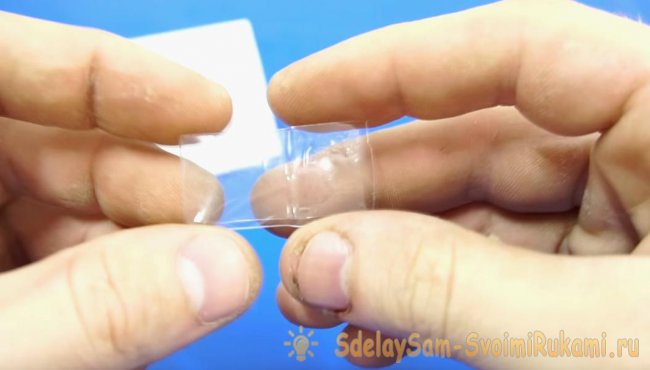

Next, cut out a strip from the rest of the bottle and bend it. It will be a spring.
Electric mousetrap

Electric mousetrap

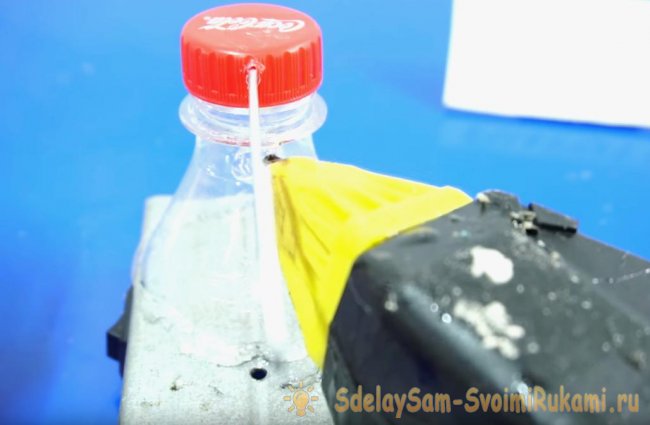

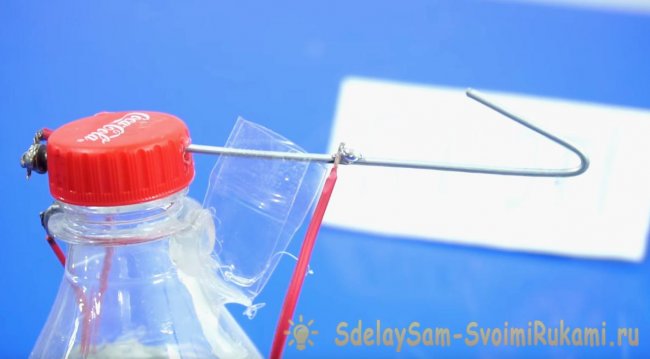

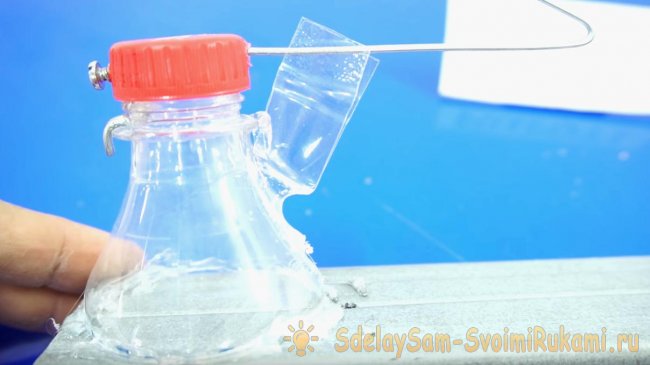

Hot glue glue it exactly in the middle between the angle of rotation of the cover.
Electric mousetrap

Electric mousetrap

That is, now, at the feast of any displacement of the electrode, it will return to its place.
Electric mousetrap

Drill a hole under the wire.
Electric mousetrap

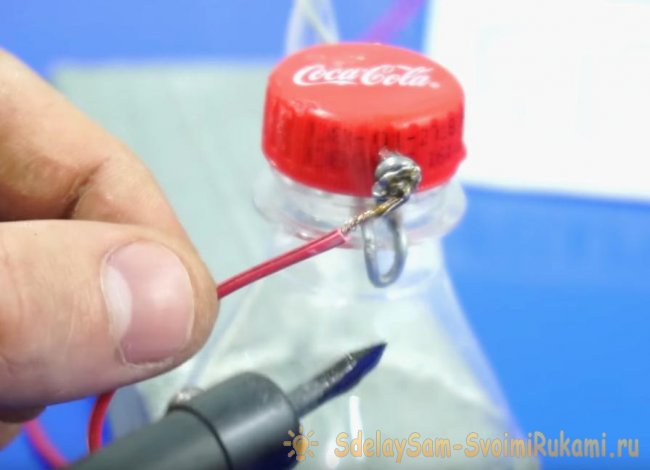

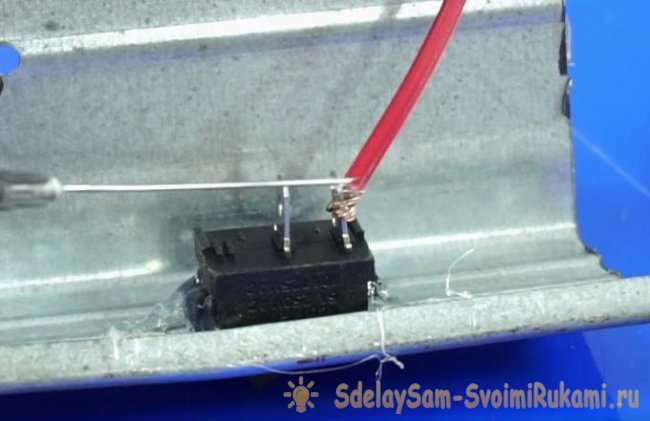

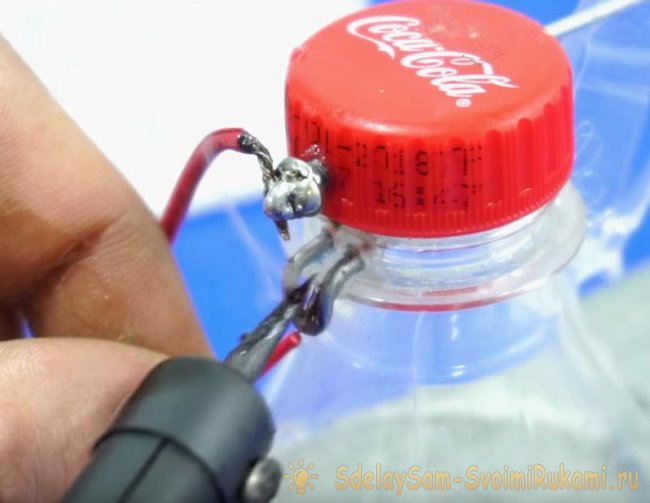

Solder the wires, collect the circuit.
Electric mousetrap

Electric mousetrap

Electric mousetrap

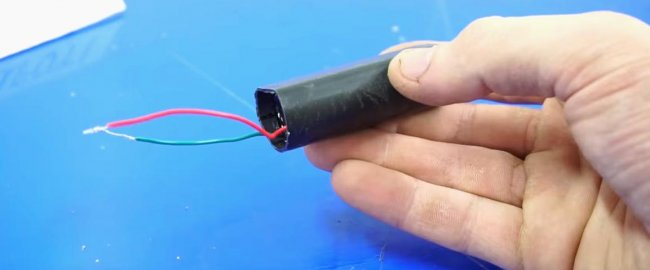

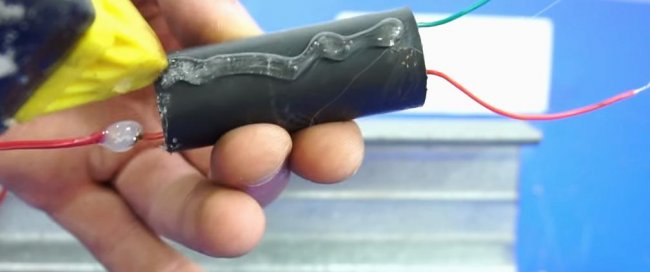

This is a high-voltage converter that converts 9 volts from a battery to 7000 V.
Electric mousetrap

Put on hot glue.
Electric mousetrap

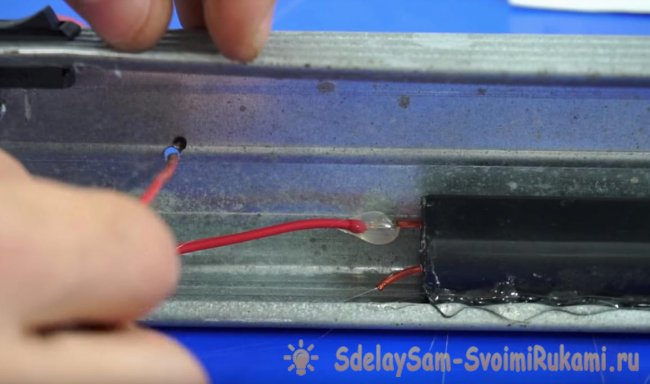

We skip the high-voltage wire and attach it to the electrode.
Electric mousetrap

Electric mousetrap

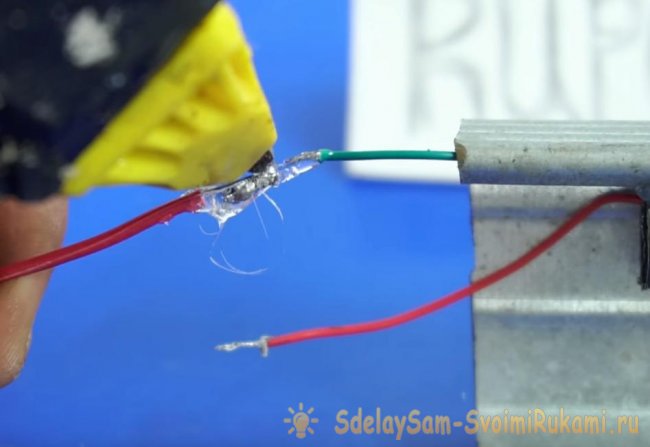

All connections are insulated with the same hot glue and attach to the body so that nothing dangles.
Electric mousetrap

Electric mousetrap

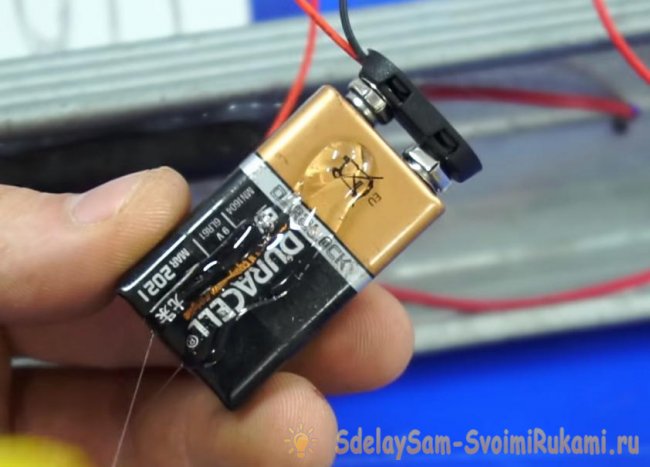

Battery also put on the hot glue.
Electric mousetrap

All is ready.
Electric mousetrap

Electric mousetrap

The principle of the mousetrap


On a hook located in the center, a piece of bacon is hung (mice and rats love it). The mouse approaches this piece and naturally tries to drag it away. She pulls him. As a result of this thrust, the contacts located on the roof close. And the high-voltage converter will run the current from the battery. The transducer electrodes are connected to the hook and bait and to the profile. As a result, a high voltage will be passed through a rat or a mouse that will try to drag off the fat, which will kill the rodent.
